DCEC Cummins Spare Parts

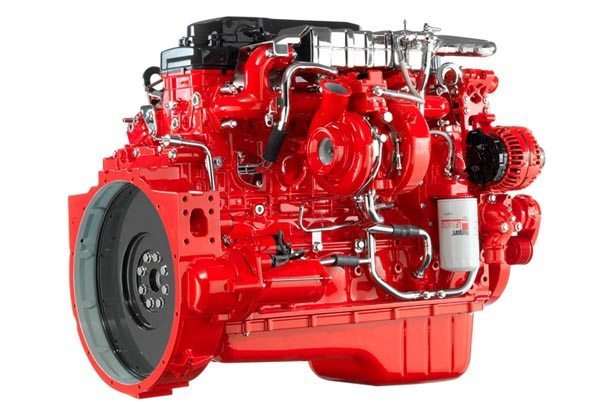

Cummins engine 4BT3.9 Series Spare Parts

Product description: Cummins engine 4BT3.9 Spare Parts
INQUIRY

Dongfeng Cummins Engine Co., Ltd., which is a 50-50 joint venture between Cummins USA and Dongfeng group, it is located in Xiangyang City, Hubei Province. This Cummins China factory is mainly manufacturing the small power diesel engine for automobile, construction, marine and genset.

Dongfeng Cummins Engine Co., Ltd , a national high-tech enterprises, its main engine model is Cummins 4B, 6B, C8.3, L8.9 series, these model are mechanical engine; Dongfeng Cummins also manufacturing ISDe, ISLe, ISZ series, which are electronic control engine; What is more, Dongfeng Cummins also manufacturing B, C, L and Z series natural gas engines, including B3.9, B4.5, B5.9, B6.7, C8.3, L8.9, Z13, power range from 125HP to 545HP.

Cummins engine 4BT3.9 Series Spare Parts

500 hours running spare part list ( recommended 2 sets/ Engine)
Item	PART #	SPARE PARE DISCRIPTION	QUANTITY
1	1012Q01-010	CARTRIDGE,LUB	3
2	1117N-010	FILTER,FUEL	3
3	1125N-010	FILTER,FUEL	3
4	A3902666	GASKET,VALVE COVER	4
5	A3911568	BELT,V RIBBED	1
6	KW1524	CLEANER，AIR	3

1000 hours running spare part list
Item	PART #	SPARE PARE DISCRIPTION	QUANTITY
1	1012Q01-010	CARTRIDGE,LUB	5
2	1117N-010	FILTER,FUEL	5
3	1125N-010	FILTER,FUEL	5
4	A3911568	BELT,V RIBBED	2
5	KW1524	CLEANER，AIR	5
6	HIC14000	Repair the bag in pressurization device	1
7	A3906230	BEARING,CRANKSHAFT THRUS	1
8	A3901090	BEARING,MAIN	4
9	A3901150	BEARING,MAIN	5
10	A3901170	BEARING,CONNECTING ROD	8
11	P277	nozzle tip	4
12	17.0146	MOTOR,STARTING， SET	1
13	17.0431	set,engine gskt	1
14	1306R2-010-B2	THERMOSTAT	1
15	C3967251	SENSOR,OIL PRESSURE	1
16	C3967250	SENSOR,TEMPERATURE	1
17	Z3900354	SENSOR,SPEED	1
18	A3941476	BUSHING	1
19	C3974947	SOLENOID，FUEL PUMP	1
20	17.0676	PUMP SET	1

3000 hours running spare part list
Item	PART #	SPARE PARE DISCRIPTION	QUANTITY
1	1012Q01-010	CARTRIDGE,LUB	15
2	1117N-010	FILTER,FUEL	15
3	1125N-010	FILTER,FUEL	15
4	A3911568	BELT,V RIBBED	30
5	KW1524	CLEANER，AIR	15
6	HIC14000	Repair the bag in pressurization device	1
7	A3906230	BEARING,CRANKSHAFT THRUS	1
8	A3901090	BEARING,MAIN	4
9	A3901150	BEARING,MAIN	5
10	A3901170	BEARING,CONNECTING ROD	8
11	P277	nozzle tip	4
12	17.0431	set,engine gskt	1
13	1306R2-010-B2	THERMOSTAT	1
14	C3967251	SENSOR,OIL PRESSURE	1
15	C3967250	SENSOR,TEMPERATURE	1
16	Z3900354	SENSOR,SPEED	1
17	A3941476	BUSHING	1
18	C3974947	SOLENOID，FUEL PUMP	1
19	17.0676	set,engine gskt pump	1
20	A3901117	VALVE,INTAKE	4
21	A3901607	VALVE,EXHAUST	4
22	A3355015	INJECTOR	2
23	1011Q01-010-A2	PUMP,LUBRICATION OIL	1
24	1106N1-010	PUMP,FUEL TRANSFER	1
25	A3960316	GASKET,COVER	1
26	A3923331	GASKET,THM HOUSING COVER	1
27	3708Q01-010	MOTOR,STARTING	1
28	37N-01010	ALTERNATOR	1
29	37N-35085-B	RELAY,STARTING	1
30	A3960342	PUMP,WATER	1
31	3940N-010	cushion rubber	1
32	A3921558	CORE,COOLER	1
33	A3960317	GASKET,OIL COOLER CORE	1
34	A3960320	WASHER,SEALING	1
35	A3914086	TENSIONER ,BELT	1
36	A3900430	TURBOCHARGER	1
37	C4939773	PUMP,FUEL INJECTOR	1
38	3802230	piston ring	4
39	A3901793	PIN,PISTON	4
40	A3901706	RING,RETAINING	8
41	3904166	LINER，CYLINDER	4
42	C3942581	ROD,ENGINE CONNECTING	2
43	A3904679	ROD,PUSH	8
44	A3907240	TAPPET,VALVE	8
45	3900139	AFTERCOOLER	1
